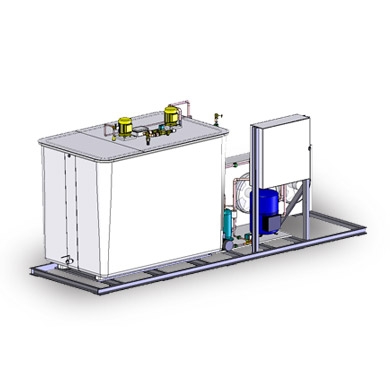

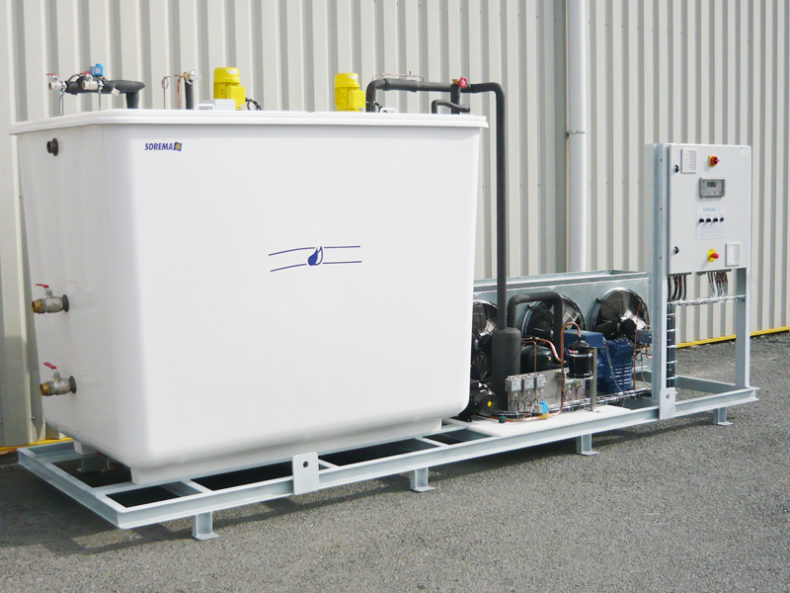

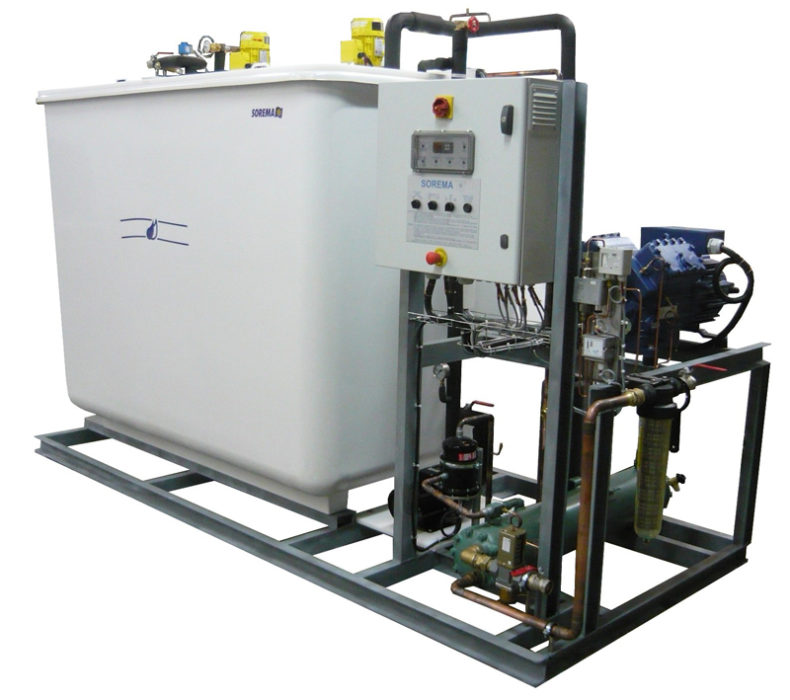

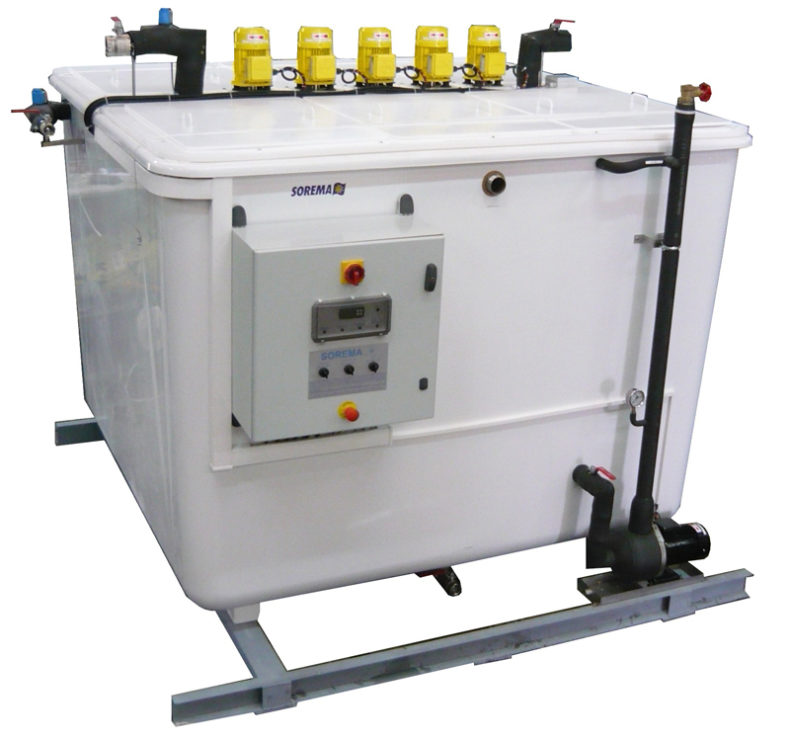

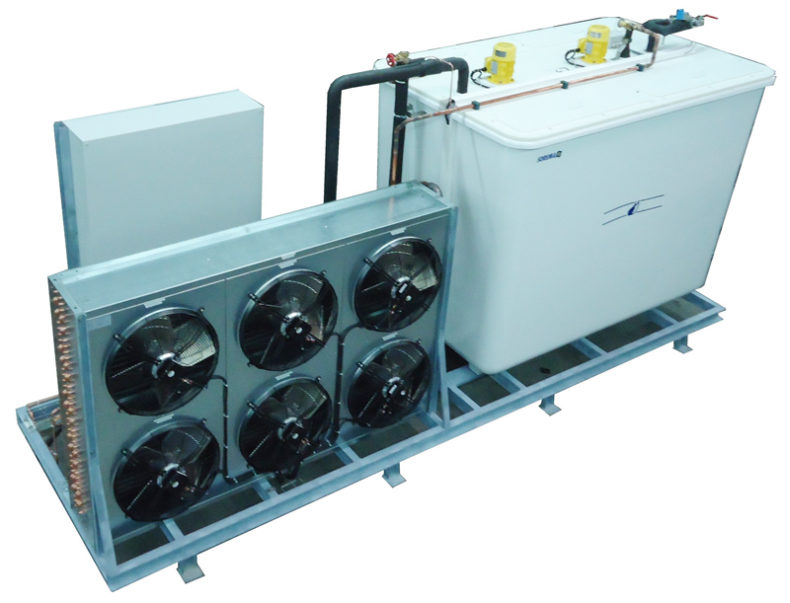

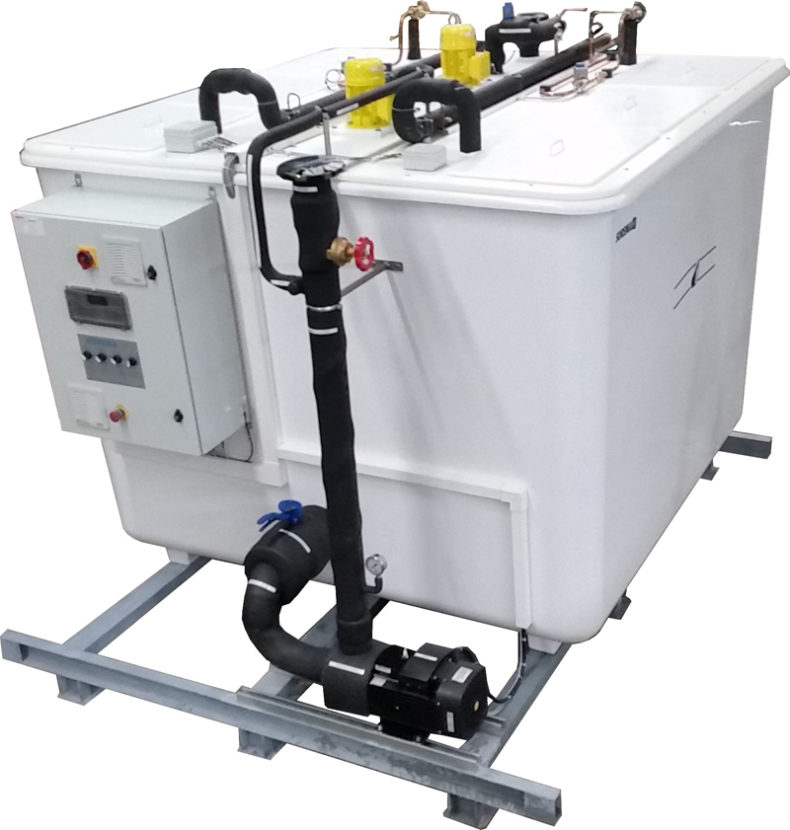

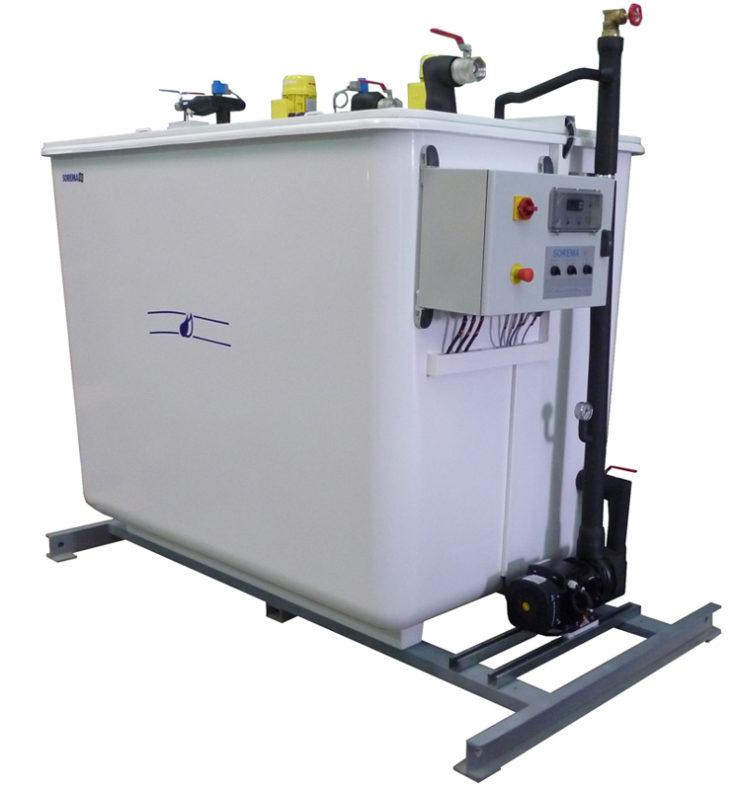

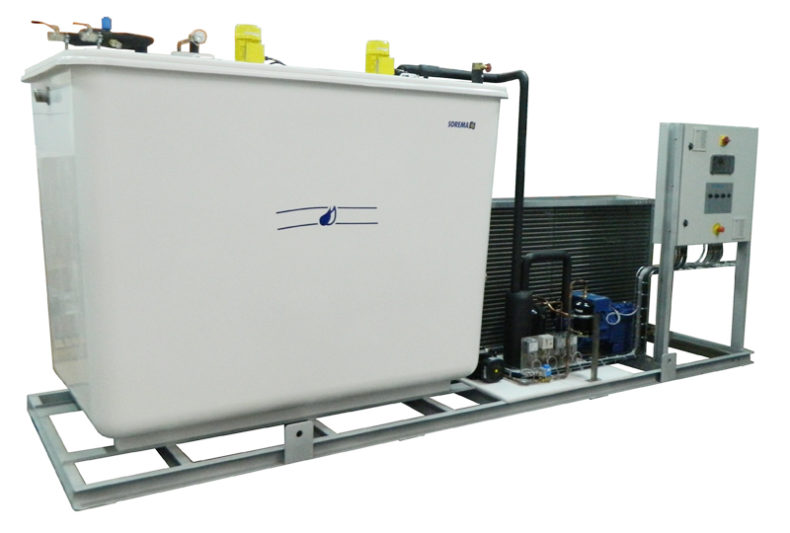

AGD chiller 750 to 2000 P

• Feedwater output up to 0.5°C
• Integrated water circulation pump
• Stainless steel harrow exchanger
• Ice accumulation
• Large-capacity insulated water tank
• Operational management PLC
• Water level management
• Customisation available
• Food-grade materials and water
• Total drainage
Questions and price queries
CONTACT US

×

    * Field required

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    Dimensions
    HEIGHT 2200 mm
    WIDTH 4500 mm
    DEPTH 1500 mm

    * Clearance height required: + 500 mm

    These chillers have been developed for industrial capacities ranging from 750 to 2000 litres.
    They are complemented by water dispensing options with cold water / hot water mixing (dispenser models DMT-MA and DMT-PROG).

    Output capacity: 750 to 2000 litres / hour
    Water inlet temperature +20°C
    Water outlet temperature +1°C

    Output capacity: 1500 to 4000 litres / hour
    Water inlet temperature +15°C
    Water outlet temperature +5°C

    Tank volume: 2800 L

    Empty weight: 1400 to 2300 kg (from 4200 to 5100 kg in operation)

    Electrical power in kW: 16 to 37

    Supply voltage: 400V-3ph-50Hz

    Option:
    Remote refrigeration unit
    Glycol water version
    Tropical version
    Other voltage
